As we’re heading in direction of a very digitized society, smartphones and different devices are on the forefront of connecting us to the world. Consequently, our vitality requirement is growing yearly, with moveable units like smartphones, tablets, and laptops changing into more and more skinny however extra highly effective than ever earlier than. However sadly, we haven’t been capable of obtain a breakthrough in battery density expertise to fulfill our rising requirement.
So what’s the workaround to this impediment?
A method of assembly the rising vitality wants of moveable units is to develop quick charging expertise that tops up a battery in minutes.
With regards to smartphones, OPPO leads the market with its revolutionary VOOC charging expertise. And earlier this month, the corporate unveiled the world’s quickest wired charging answer for smartphones – the 125W Flash Cost expertise. It will possibly cost a 4000mAh battery in simply 20 minutes.
This can be a vital growth in smartphone charging expertise, doubling charging speeds to by no means earlier than seen values.
However how protected is it to pump in such excessive wattage into your compact smartphone battery? We’ve already seen laptops just like the Dell XPS 15 cost at as much as 130W. Nevertheless, doing the identical on an exceptionally compact battery raises lots of questions.
So I made a decision to ask OPPO about 125W flash charging and the way protected it’s for the machine and the tip shopper.
If you find yourself charging a 4000mAh battery at 125W, basically topping it as much as 100% in simply 20 minutes, two main questions come to your thoughts.
- Gained’t charging at such excessive wattage generate lots of warmth, thereby compromising security?
- Gained’t this additionally degrade my battery considerably?
Earlier than we discover solutions to those two questions, it’s essential to grasp how OPPO’s 125W flash charging works.
OPPO 125W Flash Charging Defined
OPPO’s 125W flash charging is made doable with the assistance of many proprietary elements and applied sciences working collectively in synergy.
To make issues easy, listed below are a number of the specialised elements that permit the smartphone battery to flash cost at 125W.
- A Charger that may output energy at 20V 6.25A (125W)
- A thick and specialised cable that may assist present as much as 6.25A
- A USB Kind-C connector that helps greater than 5A present (in this case 6.25A)
- Environment friendly Cost Pumps that may alter the voltage to match the telephone’s battery specs
- Superior high quality batteries in a bi-cell design that may maintain charging and discharging at 12.5A (6C)
- A specifically custom-made clever management chip that controls the voltage, present, and temperature
- A battery security monitoring chip to watch in real-time, whether or not the battery in the cell phone is broken by exterior forces when in use
- 10 new temperature sensors, in addition to the prevailing 4 sensors (three on the telephone and one on the charger)
- 128-bit encryption owned by OPPO whereas additionally following TBS protocols
- VCU clever management chip, MCU Cost administration chip, AC/DC management chip, and a customized protocol handshake chip.
When all these elements come collectively, your smartphone can cost at as much as 125W.
Right here’s a primary have a look at 125W Flash Cost expertise in motion. It will possibly absolutely cost a 4,000mAh battery in 20 minutes. 🤯 #FlashForward pic.twitter.com/EWtfGcsL4m
— OPPO (@oppo) July 15, 2020
Right here’s a simplified model of how OPPO’s 125W Flash Charging Works

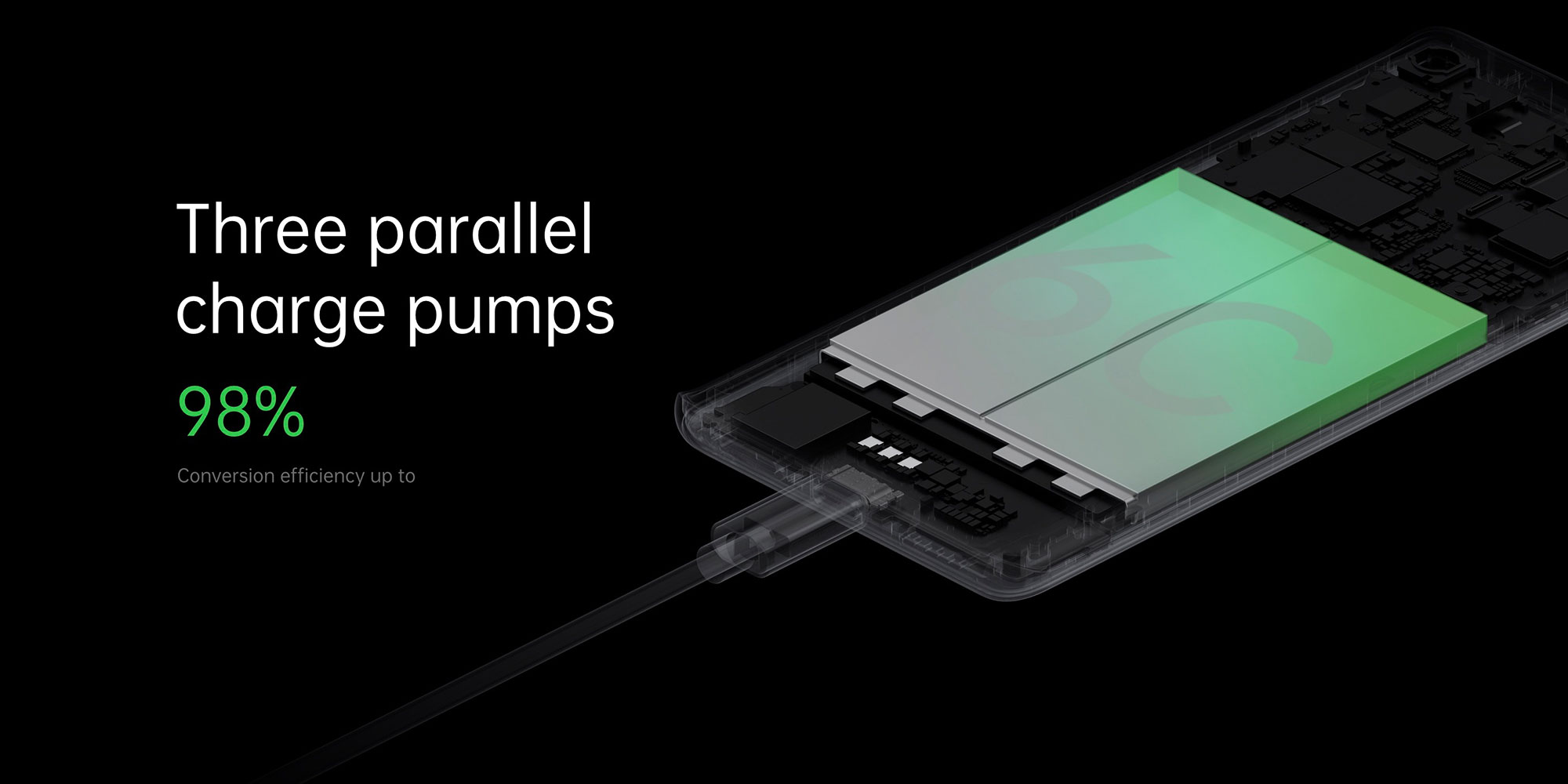

While you join OPPO’s 125W charger to your telephone through USB-C, the charger outputs energy at 20V and 6.25A. This energy is shipped to the telephone through a custom-made USB-C port that helps present over 6A. The ability from the USB-C port is then transferred to the three cost pumps. Nevertheless, the bi-cell batteries contained in the telephone don’t assist such excessive voltage. So the three cost pumps work collectively (together with the opposite microcontroller chips) to carry down the voltage to 10V and improve the amperage to 12.5A. Thus every of the three cost pumps outputs 42W (so 125W in whole) of energy to the battery with a powerful effectivity of 98%. OPPO claims that utilizing three cost pumps considerably improves effectivity and reduces warmth era. Do not forget that warmth is dangerous on your battery, and the much less warmth generated, the higher it’s on your telephone.
A vital part that makes quick charging at such a excessive present doable is the standard of the batteries. OPPO’s 125W flash charging expertise works as a result of the 6C batteries can cost at 12A.
The C-rating of a battery is the ratio of the utmost present draw and the battery capability. Right here, the 2000mAh ( equal to 2Ah) battery has a 6C score. Which means that the bi-cell batteries can cost successfully at a excessive present of 12.5A. However this may additionally imply that these batteries discharge at such a excessive fee, which is why OPPO added one other cost pump to decelerate the discharging fee. So in whole, OPPO’s 125W flash charging expertise makes use of 4 cost pumps, three for controlling the facility coming into the telephone through the charger and one for controlling the discharge fee.
Editor’s Decide: Qualcomm proclaims Fast Cost 5 with assist for 100W+ quick charging
OPPO 125W Flash Charging – How Secure Is It?
Now that we’ve acquired a fundamental thought of how OPPO’s new flash charging works, let’s come again to the questions.
Gained’t charging at such excessive wattage generate lots of warmth and thereby compromise security?
Warmth is an inevitable byproduct of quick charging. Each smartphone battery has inside resistance, and once you pump in 125W of energy throughout the charging course of, the resistance generates warmth.
However OPPO defined that they’ve taken extra measures to watch and tackle this concern.
- OPPO says that the three cost pumps that share the load present being despatched to the battery makes for an especially environment friendly answer (98% conversion effectivity) for quick charging at such excessive energy. This additionally helps dissipate warmth extra successfully, guaranteeing the battery and the telephone’s security.
- OPPO’s flash charging expertise additionally makes use of 6C batteries, that are of superior high quality than those used in its 65W SuperVOOC 2.0 (3C batteries). The bi-cell 6C batteries have decrease inside resistance and assist 12.5A present charging. This permits charging the batteries at such excessive energy with out producing a considerable amount of warmth.
- The bi-cell batteries’ distinctive parallel multi-tab construction additionally performs a big function in decreasing inside resistance and successfully decreasing warmth manufacturing throughout quick charging.
- Monitoring can be a big a part of guaranteeing the security of the machine and the consumer throughout quick charging. On this regard, OPPO explains that its 125W flash charging expertise comes with 10 extra temperature sensors. Sure, I stated extra as a result of there are already 4 temperature sensors (three on the telephone and one on the charger) in SuperVOOC 2.0 (65W). However for 125W flash charging, the corporate put in 10 extra temperature sensors in the battery tabs, BTB, and energy provide motherboard junctions to watch the charging standing in real-time.
- OPPO claims that with such excessive ranges of monitoring, the smartphone physique temperature won’t ever exceed 40℃ throughout the flash charging course of when the display screen is off.
- But when the telephone is in use, for instance, if the consumer is enjoying video video games whereas charging, the expertise is sensible sufficient to regulate the facility to keep away from overheating or different abnormalities rapidly.
- The corporate has additionally added 128-bit encryption (owned by OPPO) whereas following TBS protocols of the USB IF public model to forestall safety dangers attributable to hackers making an attempt to tamper with firmware, eliminating any potential hacking dangers.
Shifting on to the second query.
Gained’t this additionally speed up battery degradation?
If warmth is an inevitable byproduct of quick charging, then sooner battery degradation can be an unavoidable consequence.
Bear in mind how OPPO revealed that the 65W SuperVOOC 2.Zero degrades the battery sooner than customary gradual charging?
OPPO Reno Ace with SuperVOOC 2.Zero that fees at 65W degrades its battery’s capability to round 90% in 800 full charging cycles.
So should you suppose 125W would degrade the battery capability much more quickly, then you might be right.
OPPO revealed that based on their exams, the 125W flash charging reduces the battery life expectancy at 80% after 800 charging-discharging cycles.
This determine isn’t actually shocking. And it may be acceptable should you take into account the comfort of ultra-fast charging in our daily lives. Should you cost your telephone as soon as day-after-day, the 800 charging cycle quantities to over two years.
Sadly, that is the worth you pay for not having to spend hours charging your telephone.
Conclusion
Traditionally, OPPO has had a wonderful monitor file with its VOOC and SuperVOOC 2.Zero fast-charging applied sciences. On condition that the 125W flash charging is constructed upon its earlier era, security appears to be given due precedence on this new expertise as effectively.
OPPO did effectively with its Reno Ace mannequin’s 65W SuperVOOC 2.0, conserving the warmth to manageable ranges whereas charging. However we’ll have to attend and see if the 125W flash cost expertise with the extra temperature management measures can hold the telephone comparatively cool even when it fees a battery in simply 20 minutes.
OPPO has confirmed that the expertise is prepared for mass manufacturing, however we don’t know which product will get it first. In all probability, the subsequent OPPO Ace3 mannequin (OPPO has dropped Reno branding from the Ace sequence) will launch with this flash charging expertise later this 12 months.
So what do you consider ultra-fast 120W+ quick charging applied sciences? Tremendous cool or pointless?
